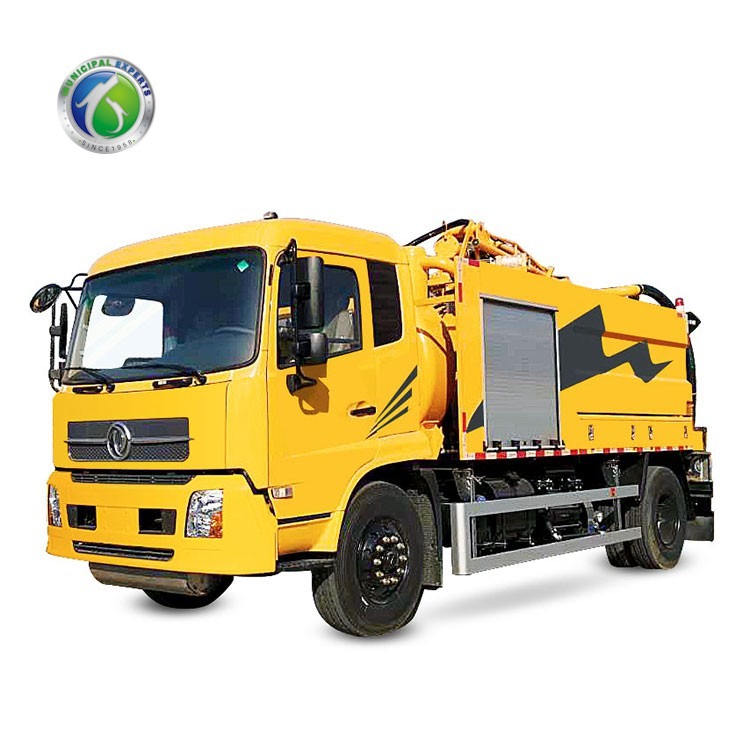

What is the main Application of the Combi Truck and Characteristics?
1.The combi vaccum tanker with jetting,dredging,suction and recycling facility is adopted top Europe technology and it is the best suction vehicle currently.We can choose different trucks according to customers' need.
2.The complete is smaller,suitable for narrow working condition as emergency equipment.It's lighter,more economic and energy-saving with higher cost-effective.
Main Technical Parameter Show Blow:
| Item | Parameters | |
| Whole tank vehicle | Name | Combination Vacuum Jetting Truck |
| Chassis |
DONGFENG, SINOTRUK, ISUZU |
|
| Wheelbase | 4350+13500 mm | |
| GVW | 25000 kg | |
| Payload | 6570 mm | |
| Dimension | 9800*2496*3780 mm |
| Sludge and Water Tank
|
Material |
Mild steel |
|
Capacity |
6,000L sludge tank & 4,000L fresh water tank |
|
|
Shell thickness |
5mm |
|
|
Tipping cylinder |
Front tipping and double acting cylinder |
|
|
Safety support |
Support the tank to ensure safety when it’s tipped up |
|
|
Sight glasses |
3units are mounted at the rear of the tank |
|
|
Over pressure safety |
Over pressure relief valve on tank top |
|
|
Full opening rear lid |
Hydraulically opening and locking |
|
|
Inlet and Outlet Valve |
Pneumatically and Manual operation |
|
|
Primary shut off |
SS float ball prevents overfilling sludge tank. |
We factory promises the following services:
1.Before sale----
Technical exchanges with customers,demonstrations,explore individual solutions.
2.Insale---
Fully implement the best customized solutions,enhance process control and optimization.
3.After-sale---
Free training,tracking guide,24 hours feedback service program.
Long and Reliable Cooperation Starts from This Moment You Click
Inheritting near six decades of production experience, Huaian Xianglong Special Purpose Vehicle Co.,Ltd has been one of the advanced enterprises engaging in production of high-end municiple maintenance vehicles, emergency rescue vehicles, combination vacuum jetting trucks etc...
Our company is ISO 9001-2008 and sticks to Brand Managemen and commits to producing full series trucks covering: combination vacuum jetting truck, industrial wet and dry vacuum truck, power rescue vehicle, sludge dredging truck. The products have been widely sold in domestic and oversea market including Mideast, Australia, Africa, Southeast Asia…
Dozens of engineers and skilled workers have been trained in Belgium, Poland, Germany. By introducing European advanced design & production concept and continuously optimizing, now the company products meets international standard and leads domestic development trend.
What's our factory Professional advantage?
1. Use Split shaft PTO(Transfer case),which is common in Euro and America.Comparing to sandwish PTO used by other Chinese supplier,our method doesn't need to break down transmission box and don't change the transmission accuracy.
2.Jetting water pressure id pneumatically controlled.Avoid the sudden high pressure which may happen if you choose three-way value supplied by other Chinese factory.Our pneumatic safety valve is from Italy together with the water pump.
3.Use Liquid ring vacuum pump.Comparing to air cooling vane pump,air flow up to 2800m3/h,-0.95bar vacuum level and long continuous work time due to water cooling type.
4.Reverse discharge capability discharges water and leaves sludge,reduces round trip times between drainage well and dumping site.
5.Jetting nozzle works with linear high pressure water flow,makes the most effective use the water pressure.
6.Multiple safety protections,includ ultrasonic liquid level indicator,float ball,pressure safety value at the top of tank and vacuum air lines.
Where is need to Use our vehicle?
To unblock and clean sewer. To vacuum suck liquid waste and clean drainage well. Dry material vacuum suction truck suck and transport powder, coal in power plant, dust or cement.
