Japan Isuzu 7 cbm customized vacuum pump septic emptier Sewage cleaning Sludge collection tank truck

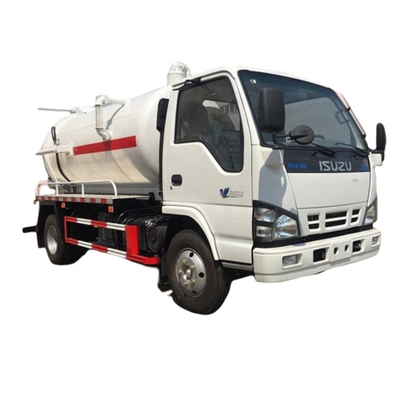

I . DETAILED VIEW OF SEWAGE SUCTION TRUCK
II. SPECIFICATION OF SEWAGE SUCTION TRUCK
|
Truck model
|
CLW
|
|
|
Model
|
CLW1100TKARY
|
|
|
Vehicle size
|
(mm)
|
5900×2000×2350
|
|
A/D angle
|
20/16
|
|
|
F/R hang
|
(mm)
|
1015/1525
|
|
Total mass
|
(Kg)
|
6495
|
|
Rated mass
|
(Kg)
|
4000
|
|
Curb weight
|
(Kg)
|
2050
|
|
Max speed
|
(km/h)
|
98
|
|
Axles
|
2
|
|
|
Wheelbase
|
3360
|
|
|
Wheel loading
|
1805/2690
|
|
|
Steel spring NO
|
3/3+2
|
|
|
Tyre NO
|
6
|
|
|
Tyre size
|
7.00R16 8PR
|
|
|
Front tread
|
1504
|
|
|
Rear tread
|
1525
|
|
|
Engine
|
Model
|
Euro 4 engine
|
|
Power
|
96
|
|
|
Horse power
|
130HP
|
|
|
More tanker equipment
|
Oily water separator, air water separator, special vacuum excrement suction pump, pressure volume gauge, pipeline system, the
sucking tube, flow valve, vacuum tank, a communicating device (as the dung window), automatic anti-overflow valve these parts |
|
|
Vacuum pump
|
Vane rotor pump with 4-way-value
|
|
|
Suction tube diameter
|
108mm
|
|
|
High pressure water pump
|
Bentian brand
|
|
|
assembly
|
Oil-water separator,
gas-water separator, Hydraulic self-unloading device, Special vacuum suction pump, Pressure volume table, Pipe network system, Aspiration catheter, Gravity valve, Vacuum tank,Connector ( depending on the dung window ), automatic anti-overflow valve, |
|
III. DESCRIPTION OF SEWAGE SUCTION TRUCK
IV . SEWAGE SUCTION TRUCK SERIES
V . SEWAGE SUCTION TRUCK WORKSHOP
VI . TRANSPORTATION & SHIPPING
VII . ABOUT US
