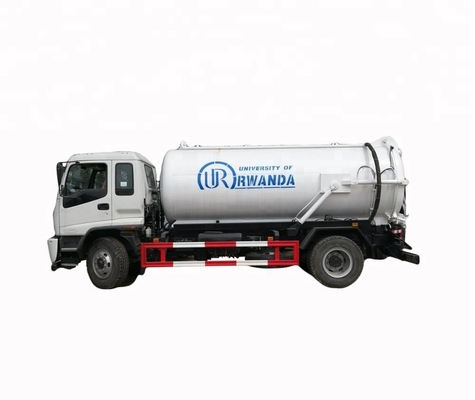

Low price waste collection vacuum suction truck 10000liters Japanese sewage truck for sale
Features
A vacuum truck is a tank truck with a heavy duty vacuum designed to pneumatically load solids, liquids, sludge or slurry through suction lines typically 2-4" in diameter with 3" being the norm. The typical pump used in the industry is the rotary vane vacuum pump. The truck can be configured to be a direct PTO/belt or a PTO/hydraulic drive system. There are two different ways to mount the pump either directly on the truck with PTO drive or on the trailer with a pony motor. Each application has different handling characteristics.
The trucks are often used by towns and municipalities for street cleanup, sewers, individual septic systems and can also be used for cleanup of contaminated soil.The trucks are used in the cleaning of sanitary sewer lift stations and in the pump out of grease interceptors that are required at many restaurants. The trucks are mostly used in the petroleum industry, for cleaning of storage tanks and spills. They are also an important part of drilling oil and natural gas wells, as they are located at the drilling site. Vacuum trucks are used to remove drilling mud, drilling cuttings, cement, spills, and for removal of brine water from production tanks. They dispose of this in sump pits, treatment plants or if within safe levels may be spread out in a farmer's field.
Technical Parameter for Sewage Suction Truck
Condition | New condition/Left hand drive/4x2 | ||
Chassis | Brand | Japanese brand | |
Curb weight(kg) | 9450 kg | ||
Wheelbase(mm) | 4500 mm | ||
Dimensions(mm) | 8200*2500*3200 mm | ||
Front/Rear Axle loading(kg) | 6300/13000 kg | ||
Wheel track (front/rear) (mm) | 1960/1855 mm | ||
Front/Rear overhang(mm) | 1335/1880 mm | ||
Approach/Departure angle(°) | 26/20 | ||
Max. driving speed(km/h) | 95 km/h | ||
Battery | 12V*2 115Ah*2 | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6 pcs with one spare tire | |
Specifications | 10.00R20 | ||
Transmission | Manual type, 6 Forwards and 1 reverse | ||
Cab | It can accommodate three people. With Air Conditioner | ||
Engine | Brand | ISUZU | |
Model | 4HK1-TCG40 | ||
Fuel type | Diesel | ||
Displacement(ml) | 5193 ml | ||
Power(kw) | 140 kw | ||
Horsepower(HP) | 190 HP | ||
Cylinder number | 4 | ||
Emission standard | Euro 4 | ||
Sewage Suction & Cleaning System | |||
Sewage tank | Capacity(cbm/liters) | 10.0 cbm/10,000 liters | |
Tank material | Q235 carbon steel | ||
Thickness(mm) | 6.0 mm | ||
Vacuum pump | Absolute working pressure(Pa) | 400 Pa(99.6%vacuum degree) | |
Academic suction speed(L/s) | 45 L/s | ||
Rotation speed(rpm) | 500 rpm | ||
Inlet and Outlet pipe | Diameter(mm) | 108 mm | |
Length(m) | 5.0 m | ||
Quantity(pcs) | 1 pc | ||
Main parts | 1. Water-gas separator 2. Oil-gas separator 3. Four way valve 4. Safety valve 5. Anti overflow valve 6. Anti overflow warning device 7. Hydraulic control rear cover 8. Tipping sewage tank body | ||
Remarks | 1. ABS(Anti-lock brake system) 2. Electrical glass 3. USB Audio 4. Hand washing device 5. The color is optional | ||
3~4CBM Sewage Suction Truck
5~10CBM Sewage Suction Truck
12~18CBM Sewage Suction Truck
